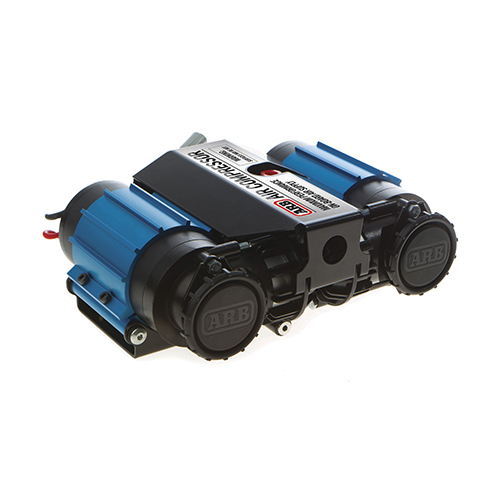

ARB Twin compressor
Vehicle mounted compressors
Permanently mounted, the range of ARB vehicle mounted compressors are water, dust, heat and shock resistant to withstand the rigours of off road travel. Each kit includes a full wiring harness with relay, multi position mounting bracket and pressure switch. Providing optimum power, the ARB twin motor design delivers class-leading air flow for fast inflation purposes. Constructed of lightweight, high-strength engineering grade materials, it incorporates quality components for quiet operation and extended durability. The twin motors incorporate internal thermal protection against extreme temperature damage while a heavy duty in-line maxi fuse for each motor provides professional circuit protection. Available as a vehicle mounted kit with associated wiring loom and mounting hardware.
Additional features
- Designed for inflating tyres and air locker activation when used in conjunction with optional accessories
- Suitable for many air tools when used in conjunction with a 4L air tank (optional with on-board models)
- 100% duty cycle
- Sealed for moisture and dust resistance
- Hard anodised cylinder bores for reduced friction
- Teflon impregnated carbon fibre piston seals for maximum trouble free life
- Anodised mounting bracket dissipates heat
- Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads
- Over-pressure safety valve equipped
- On-board model available in either a 12V or 24V configuration
Specifications:
- Net weight: 8.8kg
- Width: 19cm
- Height: 10.5
- Length: 27.8cm
- Type: Double compressor
- DC Voltage: 24V
- Max pressure: 200kPA - 2bar
- Switch: with pressure differential switch
- Overheating protection: Yes
- Filter type: Particle filter
This product fits all vehicles.
